Crytec l CRR550 l Walk Behind l Koop Diesel 6HP l Compact Double Roller 550kg l Pedestrian
This walk-behind diesel roller is a compact and highly efficient compaction solution designed for a wide range of construction and maintenance applications. Built for durability and performance, it delivers reliable results in demanding environments such as roadworks, pathways, landscaping, and small to medium-scale infrastructure projects.

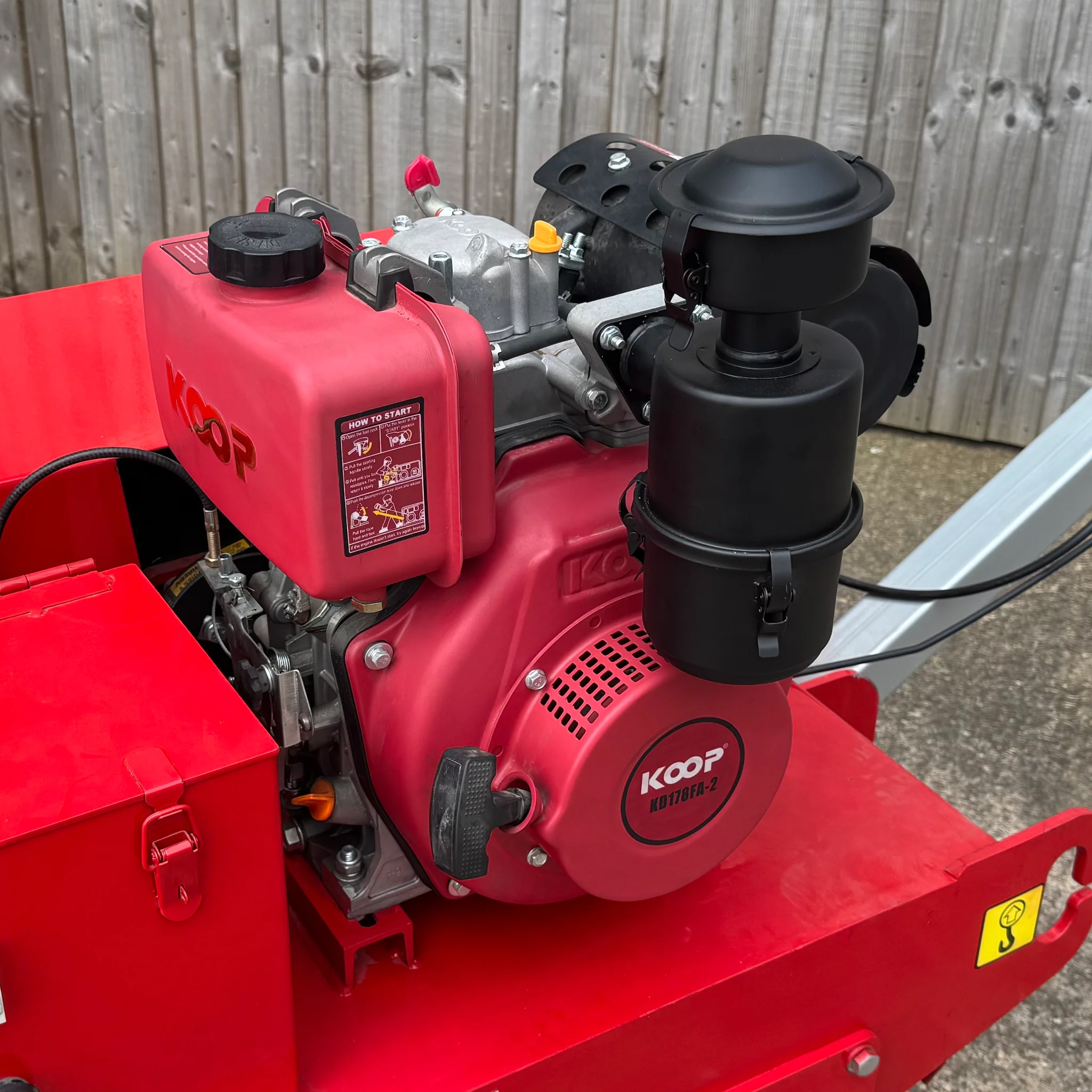

Powered by a dependable diesel engine with electric start, the machine ensures smooth operation and easy ignition, even in challenging conditions. Its advanced hydraulic drive system enables precise two-way movement, offering excellent maneuverability in confined spaces and tight job sites. The compact design, combined with a small turning radius, allows operators to work efficiently without sacrificing control.

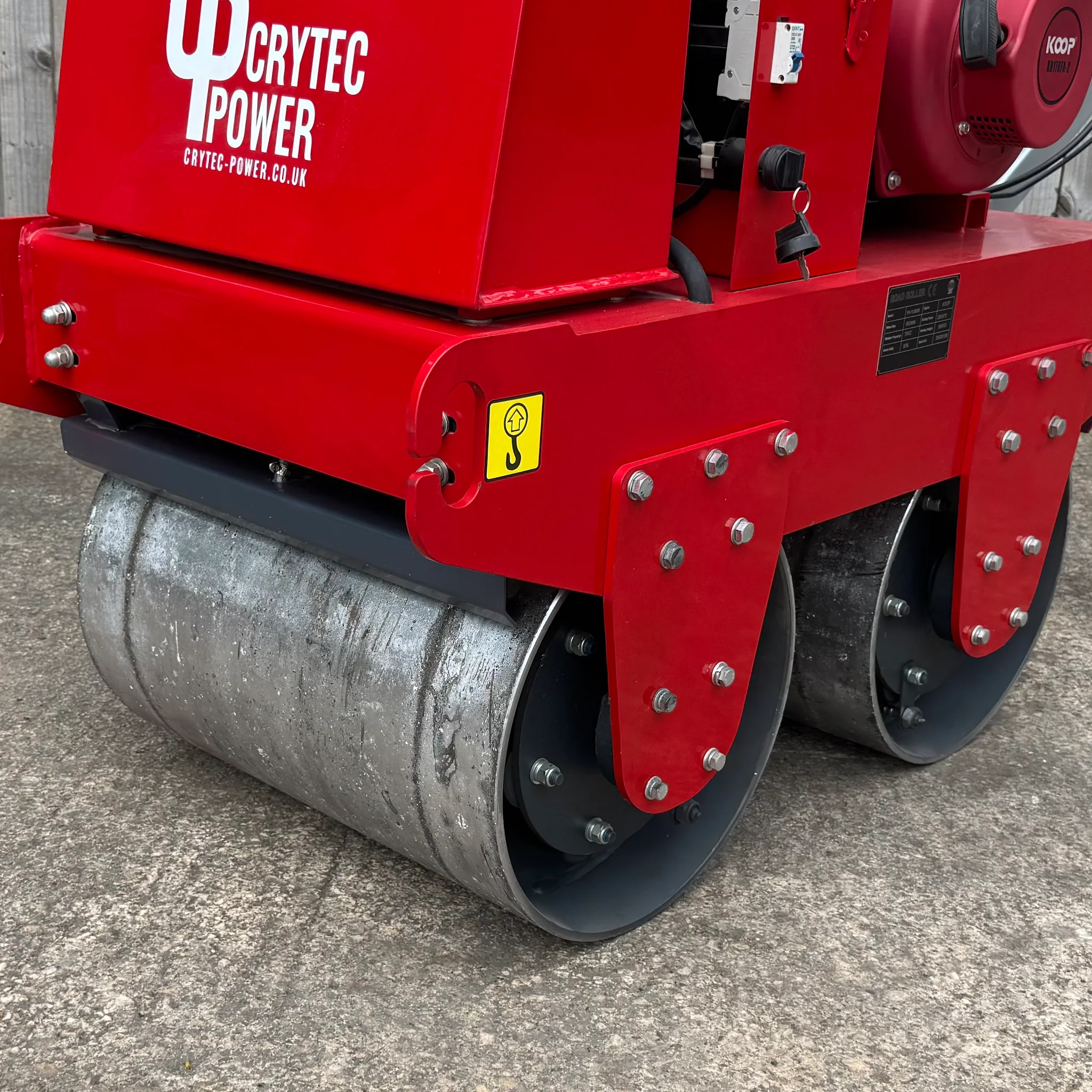

Engineered for superior compaction performance, the roller features dual-drum vibration technology that provides consistent and even pressure across surfaces. This ensures optimal density and a high-quality finish on asphalt, soil, and granular materials. The robust drum construction, paired with strong climbing capability, allows it to perform effectively on gradients and uneven terrain.
High-quality components, including precision bearings, contribute to the machine’s long service life and stable operation. The surface is treated with a protective coating that enhances resistance to rust and corrosion while maintaining a clean, professional appearance over time.

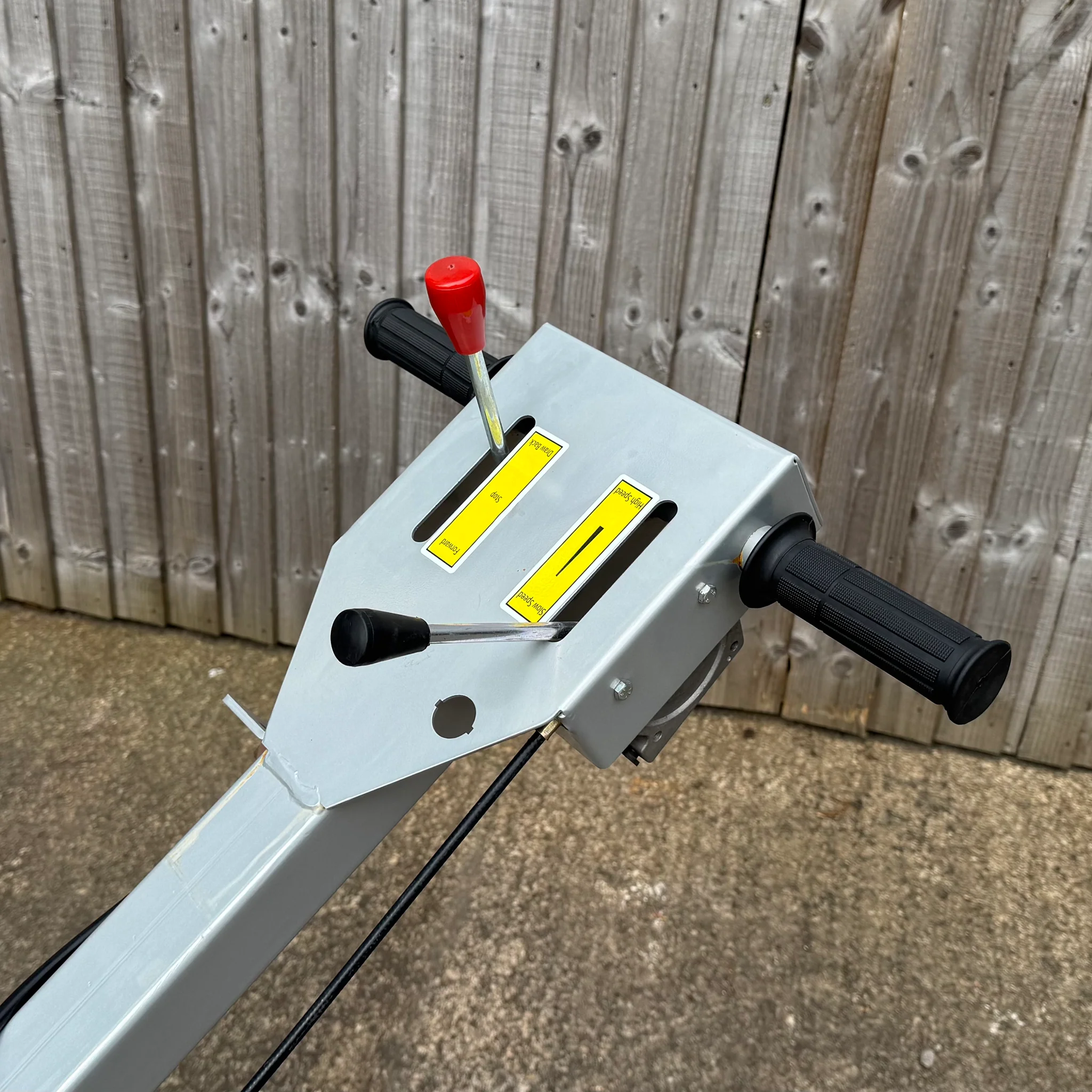

Designed with operator convenience in mind, the intuitive control layout and ergonomic handle system reduce fatigue and simplify operation. The combination of power, precision, and compactness makes this walk-behind roller an ideal choice for contractors seeking reliable performance and efficiency on every job.
Technical Specifications
- Engine Type: Air-cooled, 4-stroke diesel engine
- Starting System: Electric start
- Power Output: 6 hp
- Travel Speed: Up to 0.4 km/h
- Climbing Ability: Up to 30% gradient
Compaction Performance
- Nominal Amplitude: 0.5 mm
- Vibration Frequency: 75 Hz
- Excitation Force: 20 kN
- Vibration System: Automatic dual-drum vibration
Dimensions & Capacity
- Drum Width: 600 mm
- Drum Diameter: 426 mm
- Water Tank Capacity: 20 L
- Fuel Tank Capacity: 3.5 L
Drive & Operation
- Drive System: Hydraulic pump and motor, dual-wheel drive
- Travel Direction: Forward and reverse (two-way hydraulic walking)
Size & Weight
- Overall Length (handle folded): 2450 mm
- Overall Width: 780 mm
- Overall Height (handle upright): 1800 mm
- Operating Weight: 550 kg
Additional Features
- High-precision bearings for smooth operation
- Compact design for tight working spaces
- Corrosion-resistant coated surface for durability
